Cabin parts
Cab tilt hydrocylinder
07.068.14188
MAN - F2000, FE
Working pressure, bar: 250
Bottom bushing diameter, mm: 25
Length, mm: 470
Stroke, mm: 350
Top bushing diameter, mm: 30
07.068.16715
MAN - F90, F2000
Working pressure, bar: 250
Bottom bushing diameter, mm: 25
Length, mm: 560
Stroke, mm: 235
Top bushing diameter, mm: 43
07.068.16716
MAN - TGA, TGX
Kabīne - MAN - XL/XXL
Working pressure, bar: 250
Bottom bushing diameter, mm: 25
Length, mm: 940
Stroke, mm: 723.5
Top bushing diameter, mm: 16
07.068.16717
MAN - TGA, TGS
Kabīne - MAN - LX
Working pressure, bar: 250
Bottom bushing diameter, mm: 25
Length, mm: 889
Stroke, mm: 656
Top bushing diameter, mm: 17
07.068.16718
SCANIA - Series 5 (P/G/R/T)
Kabīne - SCANIA - CR
Bottom bushing diameter, mm: 30
Length, mm: 701
Stroke, mm: 330
Top bushing diameter, mm: 16
07.068.16719
SCANIA - Series 5 (P/G/R/T)
Kabīne - SCANIA - CR
Working pressure, bar: 250
Bottom bushing diameter, mm: 30
Length, mm: 696
Stroke, mm: 345
Top bushing diameter, mm: 16

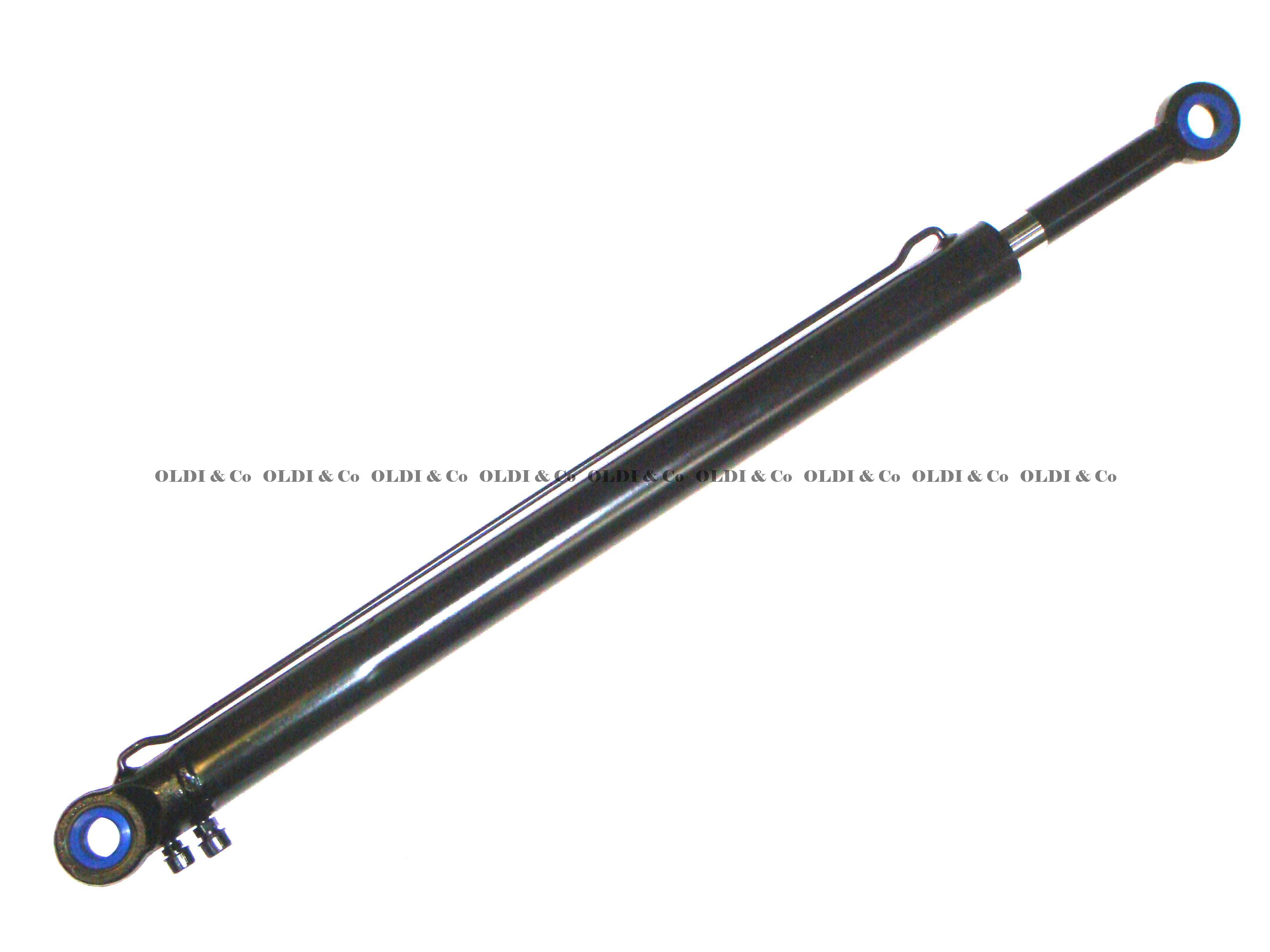

07.068.16720
DAF - 95-XF, XF-95, XF-105
Bottom bushing diameter, mm: 24
Length, mm: 865
Top bushing diameter, mm: 24
07.068.16721
VOLVO - Series FE ver.1, Series FH ver.1, 2
Kabīne - VOLVO - FH Vers.1, FH Vers.2, FH Vers.3
Working pressure, bar: 250
Bottom bushing diameter, mm: 35
Length, mm: 677
Stroke, mm: 455
Top bushing diameter, mm: 20
07.068.16722
VOLVO - FH12'93, FH16'94
Kabīne - VOLVO - FH Vers.1
Working pressure, bar: 250
Bottom bushing diameter, mm: 35
Length, mm: 677
Stroke, mm: 455
Top bushing diameter, mm: 20
07.068.16723
VOLVO - FM7'93, FM9'93, FM12'93
Kabīne - VOLVO - FM Vers.1
Bottom bushing diameter, mm: 35
Top bushing diameter, mm: 30
